Hybrid Refrigerated Centrifuge CAX-571



Hybrid Refrigerated Centrifuge CAX-571

Hybrid Refrigerated Centrifuge

CAX-571

Hybrid Refrigerated Centrifuge CAX-571

Wide Variety of Rotors

All in one unit from microtube rotors to multi-place swing out rotors.
CAX-571, a high-performance refrigerated centrifuge that combines functions of high speed micro centrifuge and versatile low speed centrifuge into one compact model, meets a wide range of applications.

Angle Rotors

Angle Rotor CA-5
CA-5
2 ml × 24
15,000 rpm
21,130 G
Angle Rotor CA-14HS
CA-14HS
50 ml (Conical Tube) × 4
or 5 ml (FACS Tube) × 4
15,000 rpm
21,130 G (50ml) / 16,860 G (5ml)
Sealed Type HS
  • ConicalConical50ml
  • FACSFACS5ml
HS It adopted a hermetically sealed structure equivalent to HS bucket or rotor designed and tested in accordance with the International Standard (Annex AA of the IEC 61010-2-020) to offer excellent sealing performance.

Swing Out Rotor & Sealed Bucket

Swing Out Rotor TS-33C & Bucket B433, Bucket cap kit B433
TS-33C
Bucket B433
Bucket cap kit B433 HS
CAX-571 & TS-33C, with the ability to accommodate 250ml bottles, 15ml / 50ml conical tubes, 5ml FACS tubes or blood correction tubes, is ideal for wide range of applications. Using an optional bucket cap kit B433 HS , various types of rotors including swinging bucket rotors of biohazard-proof can be mounted.
HS Bucket Cap Kit B433 (Option)
B433 Bucket using [Bucket cap kit B433], which has been tested and certified by the Health Protection Agency (HPA, UK) to be compliant with the International Standard (Annex AA of the IEC 61010-2-020), meets requirements for biohazard safety.

Rotors & Accessories
Selection Guide

User Friendly and Safety Features

Flex-Spin System for safer and more efficient operation

Innovative Flex-Spin System employed to maintain safe and efficient centrifugal operation allows a margin of error and eye-balancing of sample tubes.
  • *
    Some rotors are excepted.



  • CAX-571 is equipped with a function to automatically reduce the rotation speed and shut the system down if it is being run over the imbalance tolerance limit.
  • Non-chlorine, ozone-friendly refrigeration medium which has zero ozone layer destruction coefficients is adopted.
  • Flex-Spin Drive

    Flex-Spin Drive features a flexible motor shaft that equalizes minor imbalances without damaging the centrifuge or triggering the imbalance protection system. This allows excellent tolerance for minor differences in sample volumes.
  • One-push rotor locking knob

    With a single knob push, the rotor can be quickly and securely fixed.

    • *
      Some rotors are excepted.
    • To mount the rotor

      Pressing the red snap on the locking knob down

      Place the locking knob on the shaft and secure the rotor to the shaft by pressing the red snap on the locking knob down the shaft until it “clicks”.
    • To dismount the rotor

      Pull the locking knob out from the shaft

      Pull the locking knob out from the shaft, while holding down the red snap on the top.

Intuitive Display and Control Panel

LCD monitor display
1Easy-to-see LCD monitor display shows various information including remaining run time, error messages, rotor types in use and records of centrifugal operation. The monitor can display in English or Japanese.
  • *
    Indication displays on the control panel in the photo is different from displays of actual operation.
Dual color LED display allows the user to monitor the operation status just by looking the display
2Dual color LED display allows the user to monitor the operation status just by looking the display; red indicates that the rotor is spinning while green indicates the rotor is stopped.
3Popular user-friendly Jog Dial equipped with an <ENTER> button on top enables setting to be changed quickly and more surely.
  • Compact Design

    Compact Design
    With its compact design of 462 mm width and 542 mm depth it is ideally suited to applications where space is limited.

    Convenient Flashing Function

    For quick spin-down.
  • Three-step acceleration and three-step and natural deceleration

    Three-step acceleration and three-step and natural deceleration
    Initial values for acceleration and deceleration characteristics are set from 0 to 500rpm, however, they can be varied up to maximum speed in 100rpm increments by function settings.

Environmentally Friendly

ECO mode

  • ECO mode to realize an up to approximately 24% during the waiting time.
    [ECO] mode
    [ECO] key
    Activating the power-saving [ECO] mode can also help reduce the power consumption during the waiting time (standby cooling) by allowing the temperature control bands to be changed.The chamber can cool down to the set temperature within approximately 3 minutes * after release from ECO mode.
    • *
      Under the conditions: set temperature of 4℃ at an ambient temperature of 25℃.

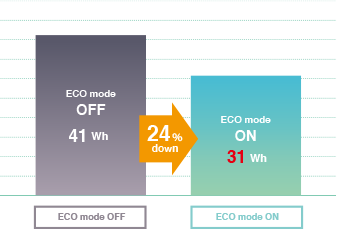

  • Power consumption at ECO mode

    Power consumption at ECO mode

    • *
      Measurement conditions: Set to 4℃ at an ambient temperature of 25℃ while centrifugation is stopped.
      (Rotors in use: CAX-571: TS-7C+7215-06)
    • *
      The values shown above are average values obtained by measuring the units.

Specifications

Model CAX-571
Hybrid Refrigerated Centrifuge CAX-571
Maximum Speed 15,000rpm
Maximum RCF 21,130G
Maximum Capacity 1,000ml (250ml × 4)
Control System Microprocessor control (feedback system)
Drive Motor Induction motor
Drive System Flex-Spin drive system (Direct drive with an automatic alignment function)
Data Entry Jog Dial equipped with an <ENTER> button
Temperature Setting Range From -9℃ to +35℃ (1℃ increments)
Speed Setting Range 100 to 15,000rpm (100rpm increments)
RCF Setting Range 10 to 21,130G(10G increments for the range less than 300G,100G increments for the range over 300G)
Time Setting Range From 10 sec to 50 sec, in 10 sec increments, from 1 min to 99 min, in 1 min increment or <F–> for free
Safety Devices Imbalance detector, Lid interlock, Lid open / close detector, Abnormal speed detector,
Over-current circuit breaker, Rotor identification system, Motor over-current detector,
Abnormally high or low chamber temperature detector.
Additional Functions Three-step acceleration characteristics selection, Three memory function,
Three-step deceleration characteristics selection, FLASH (momentary spin) function,
BART Code selection, Power saving (ECO) mode. Memory function for last run parameters.
Refrigerant HFC R404A (250g)
Rated Current 6.5A
Power Requirements 1-Phase AC220 / 230 / 240V 50 / 60Hz 8A
Power Consumption(Heat output) 990W (851kcal / h)
Breaker Rated breaking current 7.5A
Protection Against Electric Shock Class I
Dimensions(except protruding portion) 462W × 542D × 884H mm (table height: 776H mm)
Net Weight 124kg
Environmental Requirements Ambient temperature range:10 to 35℃, Relative humidity:30 to 85%, Atmospheric pressure:700 to 1,060hPa
Intended exclusively for use indoors, Overvoltage category: II, Pollution degree: 2
Accessories Included Operator’s manual × 1copy, BART Code table × 1pc, Clear storage case for operator’s manual × 1pc,
Attaching screw for clear storage case × 1pc, Digital Warranty Information × 1copy, Spanner × 1pc,
Level gauge × 1pc, Rotor locking knob × 1pc, Drain plug × 1pc, Power cord × 1pc.
  • *
    The above specifications show the maximum value of speed, RCF (G) and sample capacity. These values may change according to the combination of rotor, bucket, adaptor and tubes.
